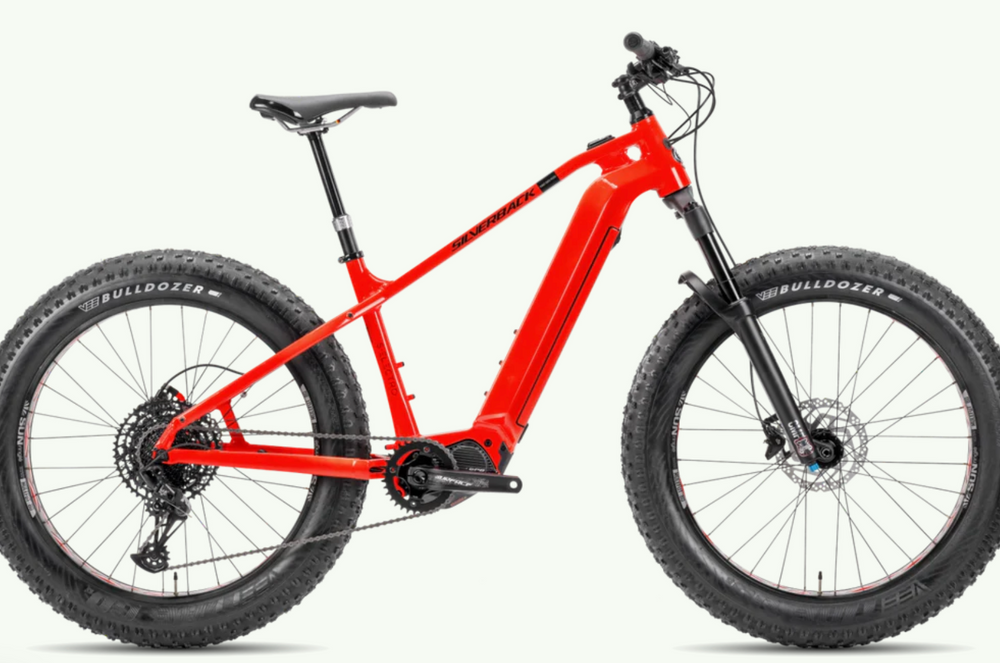

S-electro Diamond Fat Explorer (EP8, Manitour fork, 720 Wh battery, NX/SX groupset)

€2.899,00

SPECIFICATIONS.

FRAMESET

Frame

Aluminium E - MTB frame, 720wh battery compatible. Shimano STEPs EP8, E8000 or E7000 compatible motor. The geometry is designed for the typical Fat Bike enthusiast making the ride experience feel comfortable on those long rides. This frame has tyre clearance for 26 x 4,8" tyres. Sizes range from S - XL

Headset

Token TK035A-15 Sealed Bearing

Frame Axle Spacing

197x12mm

Axle Specification

229x12mm P1.75

Hanger Type

Hanger 03

E-BIKE

Motor

Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque

Battery

Darfon 720Wh, 36V, 20Ah Li-Ion Battery, 3.8Kg Weight

Charger

Darfon Smart Plus Battery Charger, 100-240V, 4A, EU use

Display

Shimano SC-EM800 Cycle Computer, 31.8mm

Switch

Shimano SW-EM800, Left

SUSPENSION

Fork

Manitou Mastodon Comp,Air Suspension fork,1.5" Tapered Steerer, 120 mm Travel, 15X150mm

Fork Travel

120mm

WHEELS

Wheelset

Sun Ringle Mulefüt 26'' FATBike Custom Wheelset

Hubs

F: SUNringlé SRC 150x15, 6 Bolt

R: SUNringlé SRC 197x12, 6 Bolt

Rims

F: SUNringlé Mulefüt 80SL, Tubeless Ready

R: SUNringlé Mulefüt 80SL, Tubeless Ready

Tyres

F: VEE Tire Bulldozer 26x4.7", Foldable , Tubeless Ready, 72TPI

R: VEE Tire Bulldozer 26x4.7", Foldable , Tubeless Ready, 72TPI

Max Tyre Size

4,8"

DRIVETRAIN

Crankset

Alloy Fat Bike Crank, Anodized Black, EP8

Max Chainring Size

38T

Shifter(s)

L: NIL; R: Sram SX Eagle Trigger Shifter

Rear Derailleur

Sram NX Eagle, 12 Speed, 50T

Cassette

Sram SX Eagle, 11-50T

Chain

Sram SX Eagle, 12 Speed

BRAKES

Brakes

F: Shimano BR-MT410, Resin Pads

R: Shimano BL-M4100, Resin Pads

Rotors

F: Shimano SM-RT10 180mm Rotor, 6-Bolt

R: Shimano SM-RT10 180mm Rotor, 6-Bolt

COCKPIT

Grips

SBC Lockon Grip

Handlebar

SURFACE Alloy Handlebar, Dia:31.8mm, Backsweep:9°, Rise 5mm

Stem

SURFACE Alloy Stem, 31.8mm, Rise 6°, with stainless steel bolts

Saddle

SURFACE E-BIKE saddle, Black, Cromo Rails

Seat Post

SURFACE Dropper Post with remote lock out, 30,9mm

Seatpost Clamp

SURFACE QR Clamp

WEIGHT

Bike Weight

24,8kg (M size, no pedals)

RIDER WEIGHT LIMIT

120kg - combined weight of bike and rider (including all kit).
